DeHavilland Mosquito
Part One - Photos of Mosquito EG-F
EAA Fly-In, Oshkosh

by Norman A. Graf



Mosquito EG-F

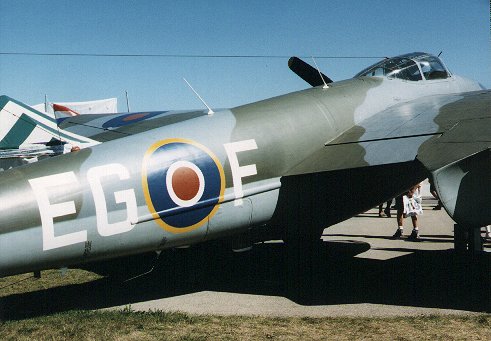

Side view with EAA blimp in background.




CONTENTS

Part One
               16 photos of Mosquito EG-F taken at the EAA Fly-In at Oshkosh

Part Two
                9 photos of engines on the Mosquito at the RAF Museum in Hendon.

Part Three
                11 photos of a Rolls-Royce Merlin at the Planes of Fame Museum







Three-quarter rear view.

Rear view.

Nose view.

Outboard view of starboard nacelle.

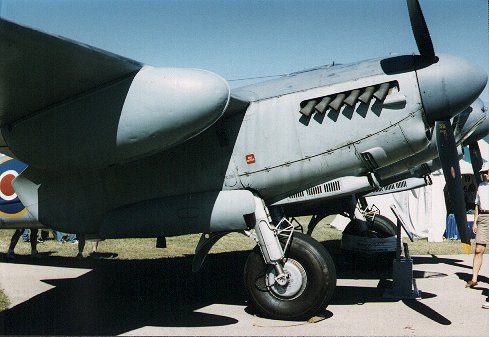

Starboard nacelle and main gear.

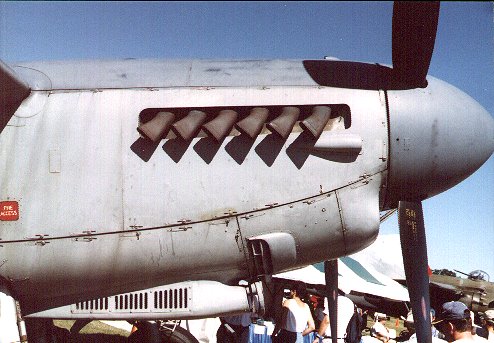

Outboard view of starboard engine.

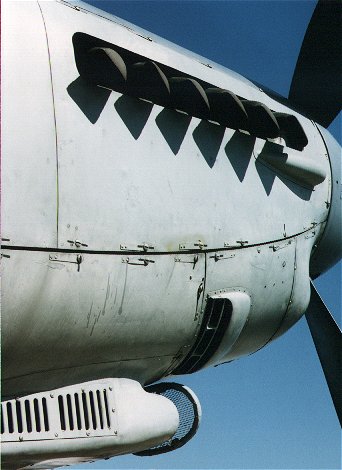

Exhaust stack. Note screen over air scoop.

Small antennae are modern.

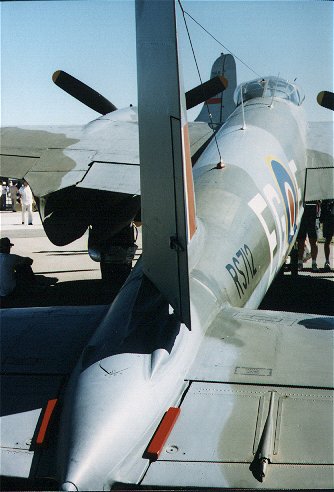

Tail.

Note chocks to limit aileron movement.

The nose (with modern firefighting equipment).

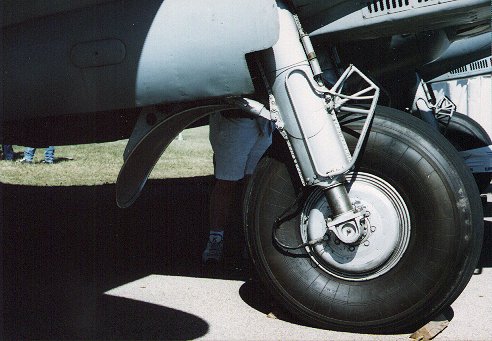

Outer view of starboard main gear. Note position of mudguard.

Starboard main gear. Note screen on air scoop.

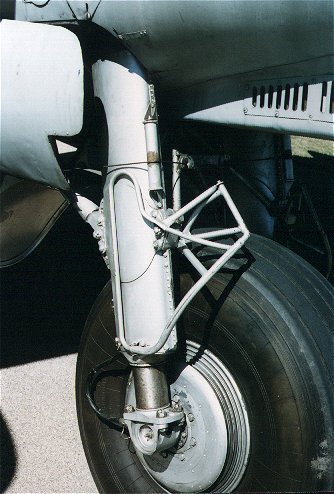

Starboard main gear with ornate gear door actuator.

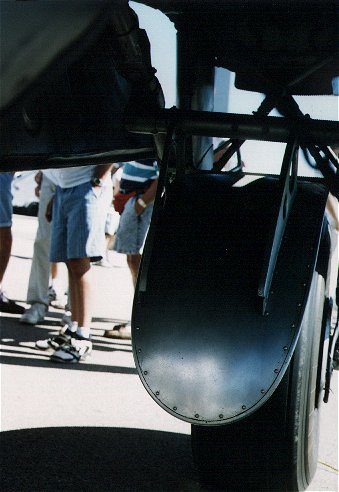

Poor shot of starboard mud flap.


Go to

Part One
               16 photos of Mosquito EG-F taken at the EAA Fly-In at Oshkosh

Part Two
                9 photos of engines on the Mosquito at the RAF Museum in Hendon.

Part Three
                11 photos of a Rolls-Royce Merlin at the Planes of Fame Museum




Images Copyright 1999 by Norman A. Graf
Page Created 30 March, 1999
Last Updated 13 May, 2001
