6. WNr.163824 Photo Gallery


23 additional images are provided to further illustrate the text in Part One of "Late War Luftwaffe Fighter Camouflage". To view an image at full size simply select and click. To return to this page click the "back" arrow on your browser (all photographs copyright 1998 Brett Green).

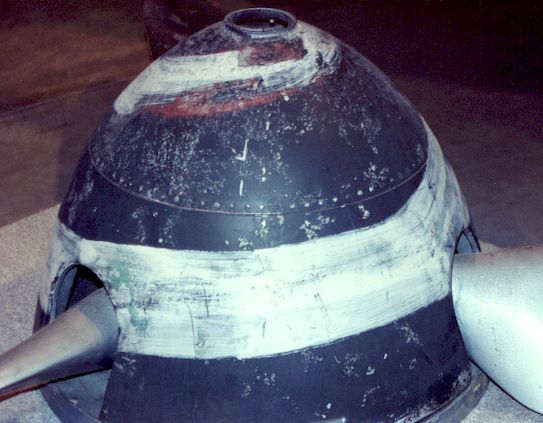

    Spinner - note primer under spiral. Silver is protective covering over prop blades

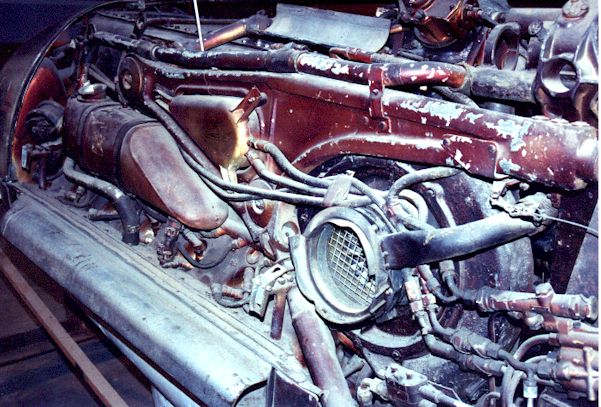

    DB605 Powerplant. Red colouring of some parts is unusual. May be heat discolouring.

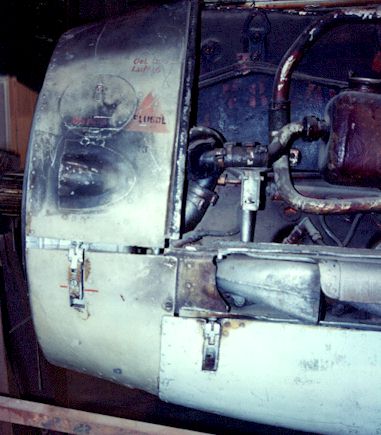

    Hand-painted oil-filler instructions and good latch detail.

    Horse-shoe oil tank behind spinner.

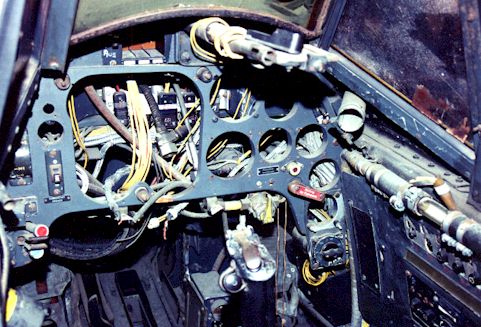

    Instrument panel sans instruments!

    The remainder of the cockpit is quite complete.

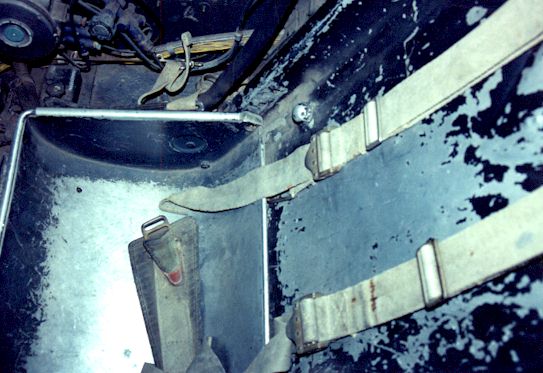

    Tub seat. Typically, the back of the seat is not installed.

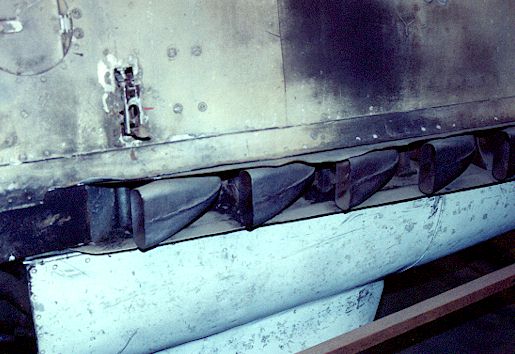

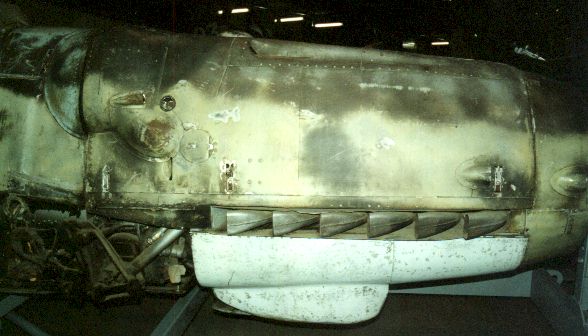

    Note heavy seam on exhaust stacks

    Starboard cowl with typical G-5 features.

    Heavy scuffing on gun-breech cover reveals RLM 77 undercoat. Note hole in windscreen.

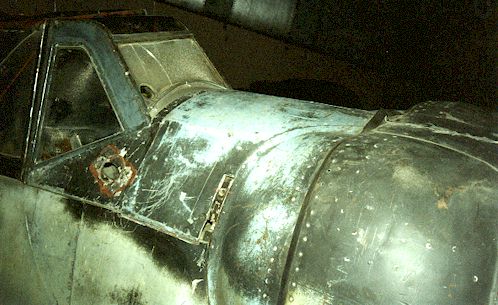

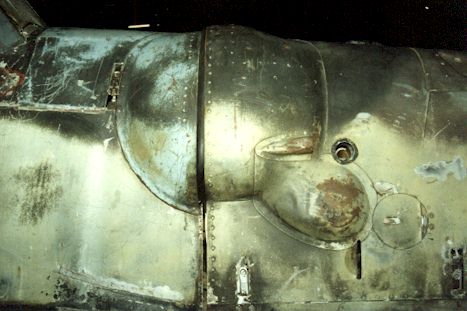

    Patches of RLM 76 mottle (or more likely RLM 77 under scuffed surface) on gun bulge.

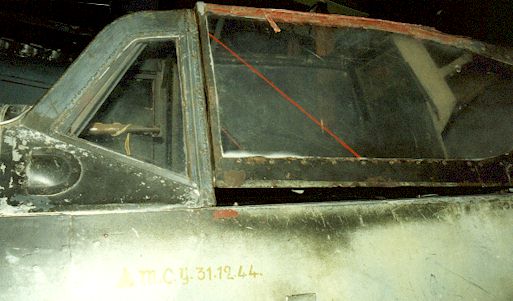

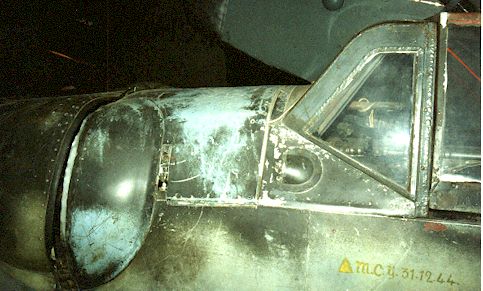

    Port side too. Note red primer under canopy and rebuild date painted below.

    Erla Haube canopy. Galland Panzer can be seen. Note dive-angle indicator

    Streaky, patchy lower surface colours on starboard fuselage.

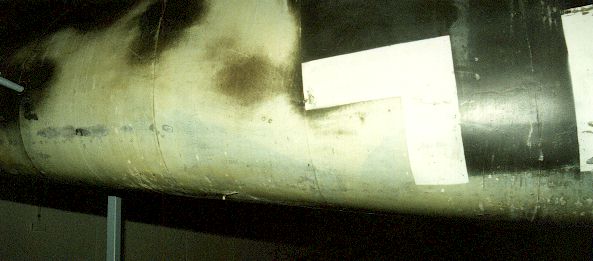

    Demarcation between Green-Grey and Yellow-Green continues through bottom of cross..

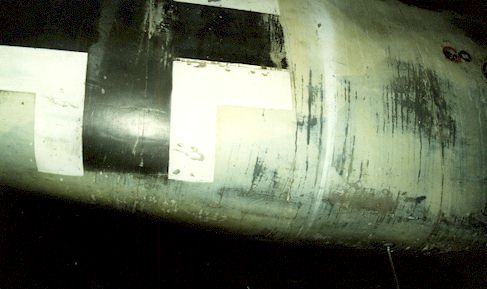

    ...and to the rear of the fuselage

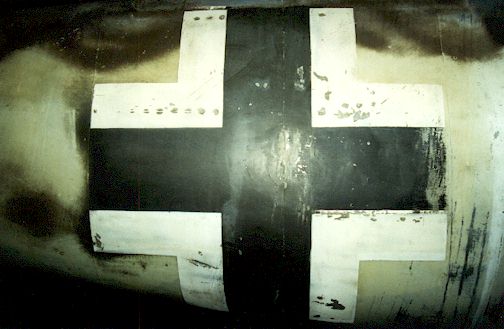

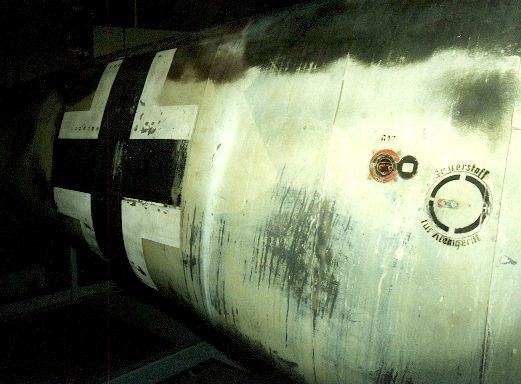

    Starboard side Balkenkreuz...

bf10929_b17.jpg (36878 bytes)    Detail of brush marks and both RLM 02 primer (over panel joins) and natural metal underneath

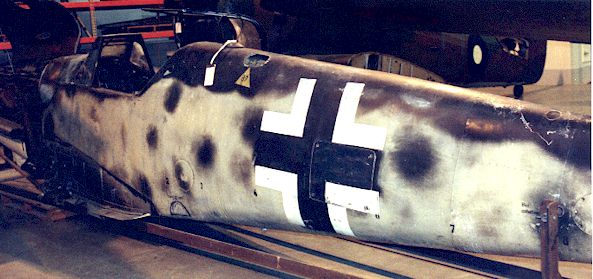

    Port side camouflage pattern.

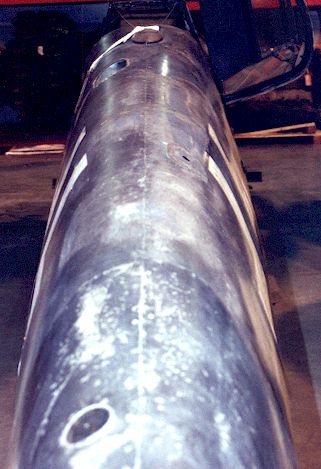

    Spine of the fuselage. Note centre panel line and clear inspection port (rear top port side).

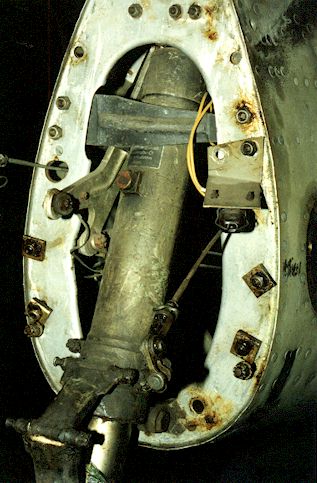

    Tail wheel strut.

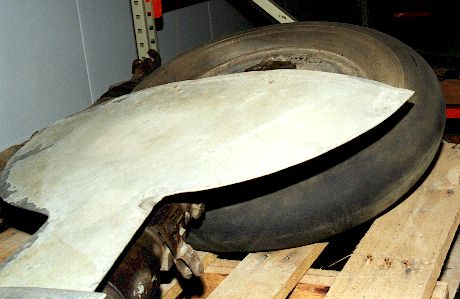

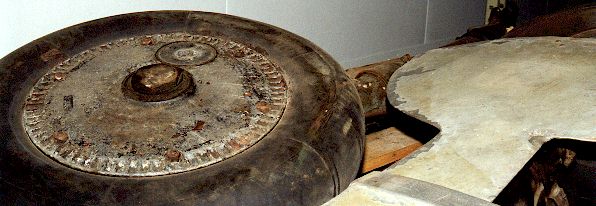

    Starboard wheel.

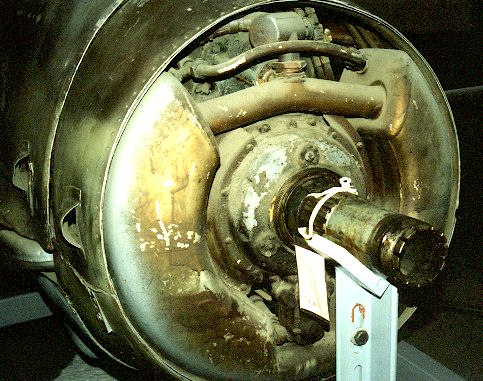

    Port undercarriage gear. Note different tyre tread pattern.
