Heinkel He 162
Main Landing Gear

by Norman A. Graf

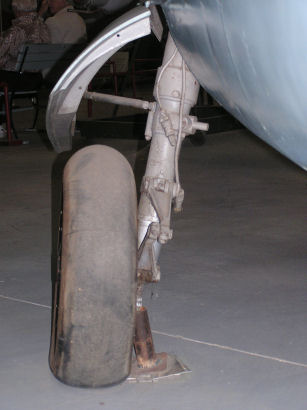

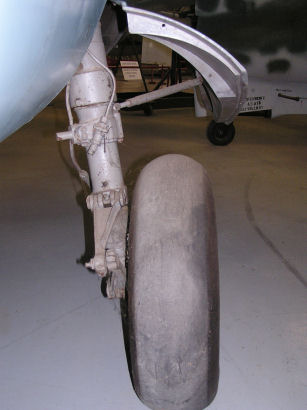

The main landing gear from the front.

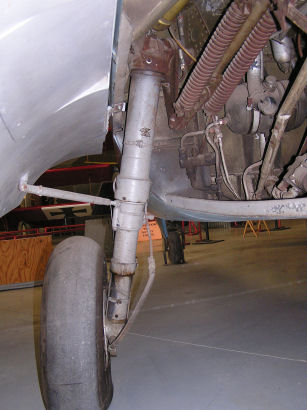

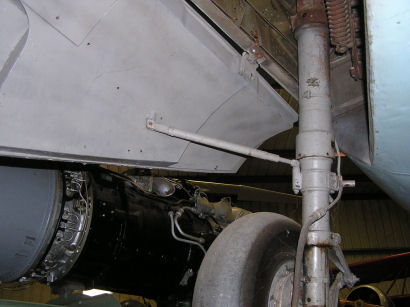

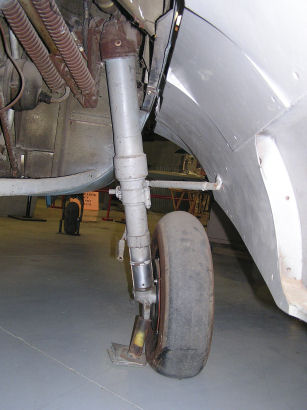

The main landing gear and wheel well from the rear.

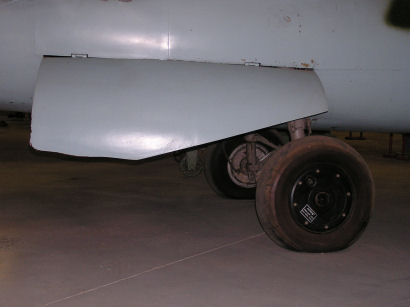

The exterior of the main wheel well door. Note the simple hinges used on the plywood doors.

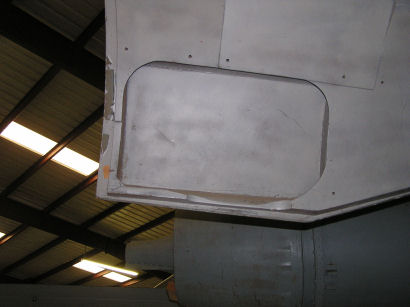

The inside of the main wheel well door.

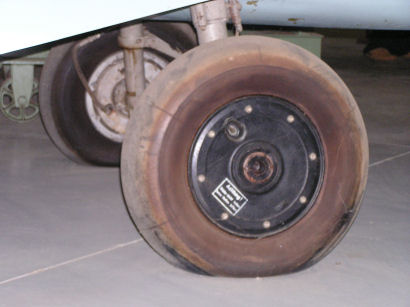

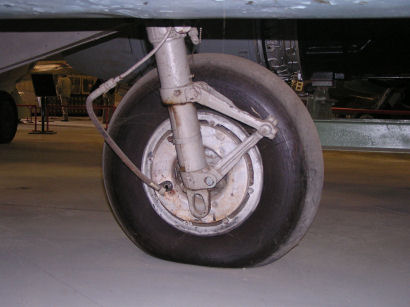

The main wheel.The stenciling reads Achtung! Räder nicht teilen bevor Reifen luftleer which translates as Warning! Do not separate wheels before the tires are deflated.

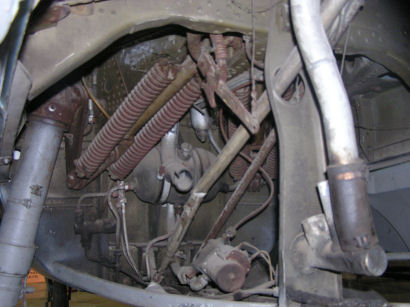

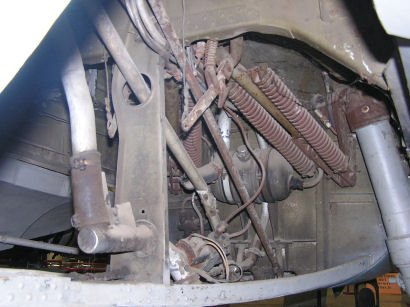

Looking forward into the main wheel well from port (left) and starboard (right).

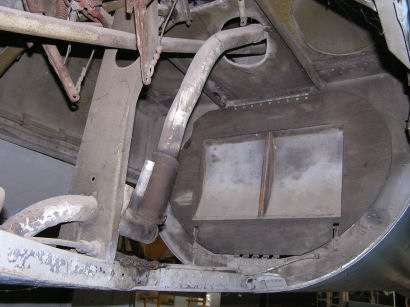

Looking back into the main wheel well.


Images Copyright 2005 by Norman A. Graf
Page Created 02 January, 2005
Last Updated 03 January, 2005
