Heinkel He 162
Engine Nacelle

by Norman A. Graf



Click here for detailed photos of theBMW-003 engine.

A profile view of the engine nacelle.

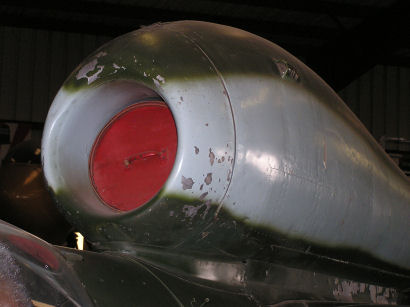

Engine intake.

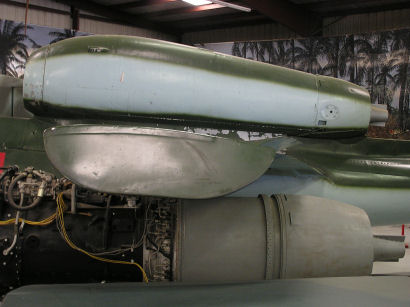

General views of the overhead engine mounting.

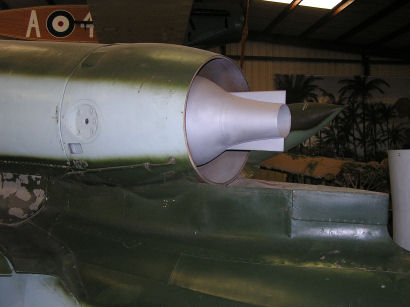

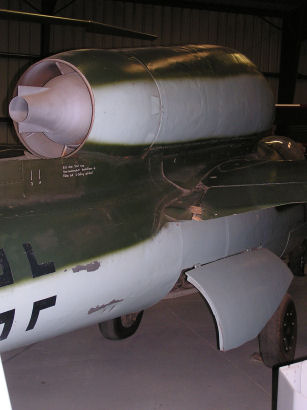

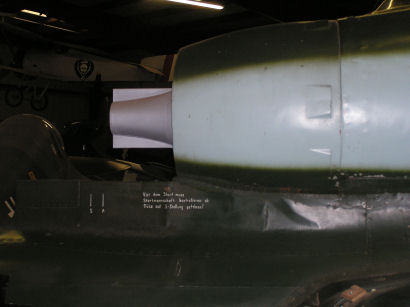

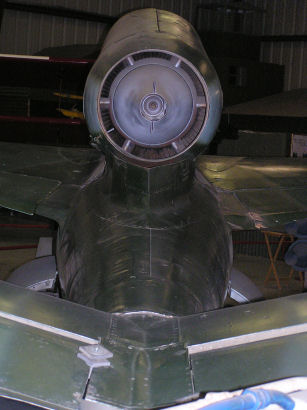

Several views of the engine exhaust. Note the exposed plumbing on the rear port side of the engine. The stenciling on the starboard side reads Vor dem Start muss Startmannschaft kontrollieren ob Düse auf S-Stellung gefahren! which translates as Before starting, the ground crew must ensure that the jet exhaust is set to S.

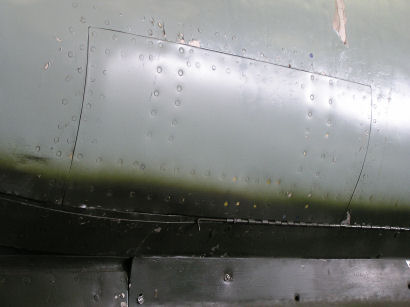

A closeup of the simple piano hinge along the lower edge of the nacelle.

Click here for detailed photos of theBMW-003 engine.




Images Copyright 2005 by Norman A. Graf
Page Created 02 January, 2005
Last Updated 03 January, 2005
