Fuel Gauge

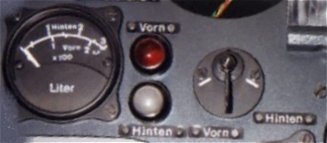

The fuel gauge as installed in the FW190A8 measured in liters. The gauge could be switched between the front ("Vorn") and rear ("Hinten") tanks (230 and 300l, respectively) using the tank selector switch located to its right.

An indicator lamp (white) lit up when the rear fuel tank was empty. A warning lamp (red) lit up when the forward tank was empty to indicate a low-fuel situation.
