F-105 Inlets



I am currently in the UK and today we visited Duxford.

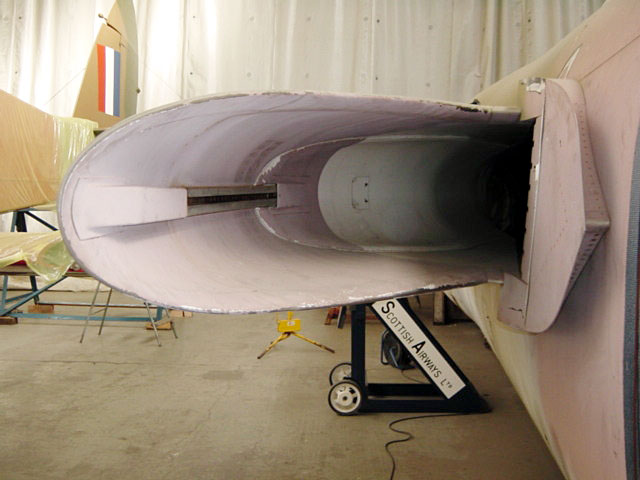

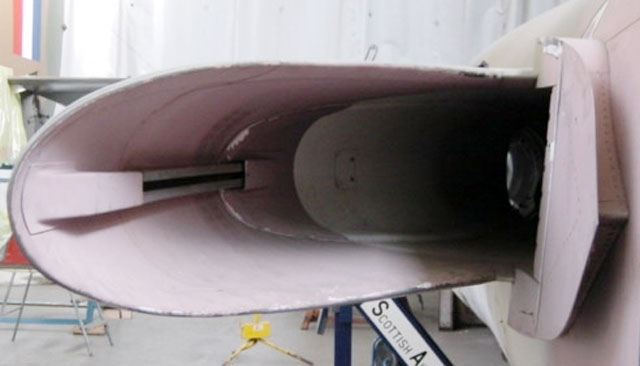

While there, I checked on the progress of Foley's Folly (the REAL one) that is undergoing the early stages of restoration. The fuselage was sitting on the floor, thus allowing a good look down the intake (one that I had never seen before anyway).

With the new Trumpeter kit out there, I thought HyperScale visitors might find these photos of some use.

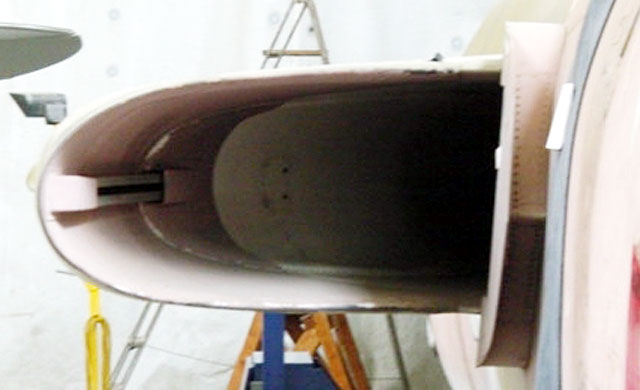

A most interesting study of the Thud's variable ramp mechanism.


Click the thumbnails below to view larger images:
