A-10A JAWS Schemes
Part Three - A-10A 75-259

by Dana Bell


A-10A Thunderbolt II 75-259
 in flight during Exercise JAWS II, November 1977


HyperScale is proudly sponsored by Squadron.com




After a bit of a delay, here’s the third and final installment of our examination of the Joint Attack Weapons System camouflage schemes for A-10s. (The first piece in the series can be found at http://www.clubhyper.com/reference/a10ajawsschemesdb_1.htm and the second at http://www.clubhyper.com/reference/a10ajawsschemesdb_2.htm .)

Of the four aircraft painted in these spotted schemes, 75-259 has always been my favorite. It was the only aircraft to carry all five ground attack colors, with spots of gray 36213, dark green 34092, brown 30118, and tan 30227 applied over a base coat of olive green 34102 applied in the autumn of 1977.

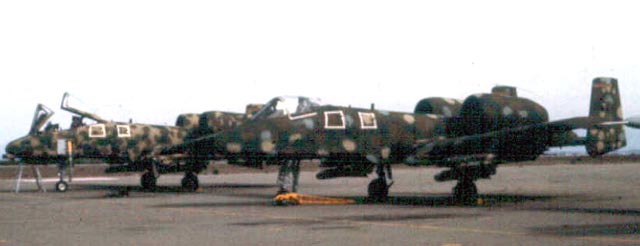

75-259 and 75-258 on the line


There is some discrepancy as to the original scheme worn by 259 - a minor issue when modeling the aircraft, since the delivery colors show through the JAWS camouflage in several sections. Air Force records show that the aircraft was accepted on 19 December 1975 wearing 36375 Light Ghost Gray overall. Fairchild factory drawings show the aircraft delivered in overall 36320 Dark Ghost Gray. 259 would later be used as a test bed for the European I scheme in late 1978.

Delivered as the second production airframe, 259 actually carried many of the same features as the six preproduction airframes. Since its flaps had been designed to extend 30 degrees (not 20 degrees, as on later production airframes), small flap guided extended beyond the trailing edge of the wing, even when flaps were fully retracted.

Camouflage drawings of the color scheme and photographs of the camouflage details are provided below.

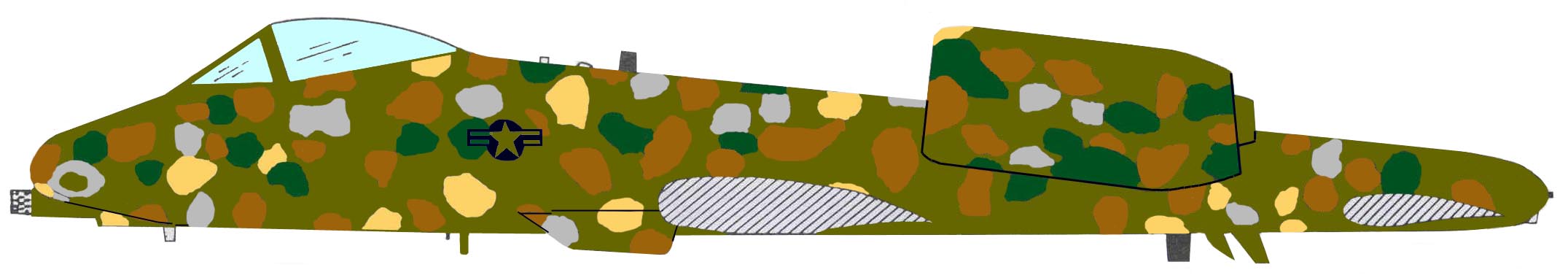

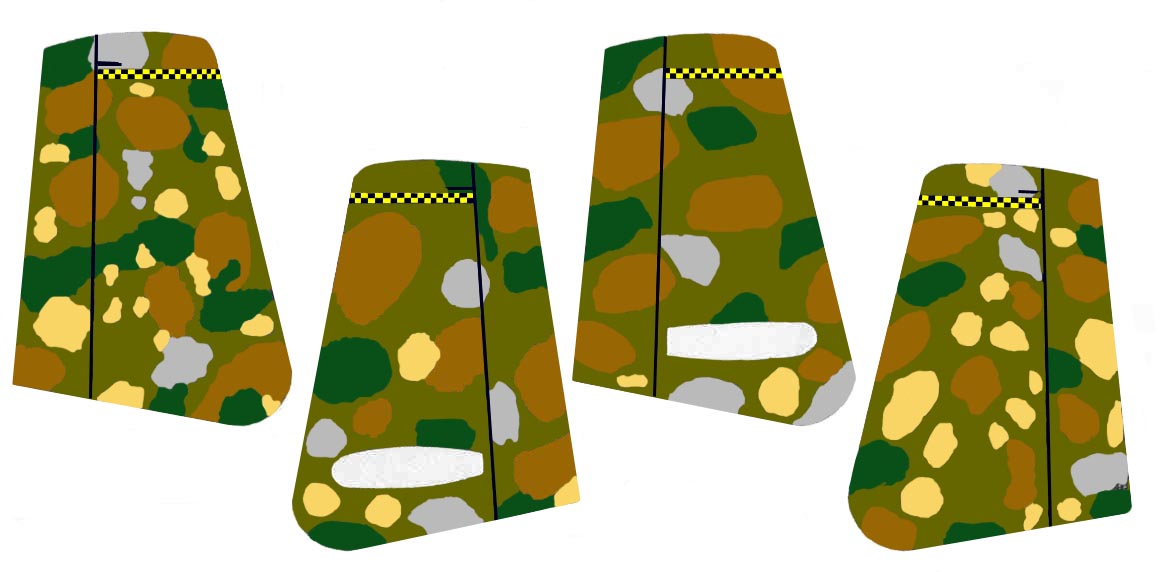

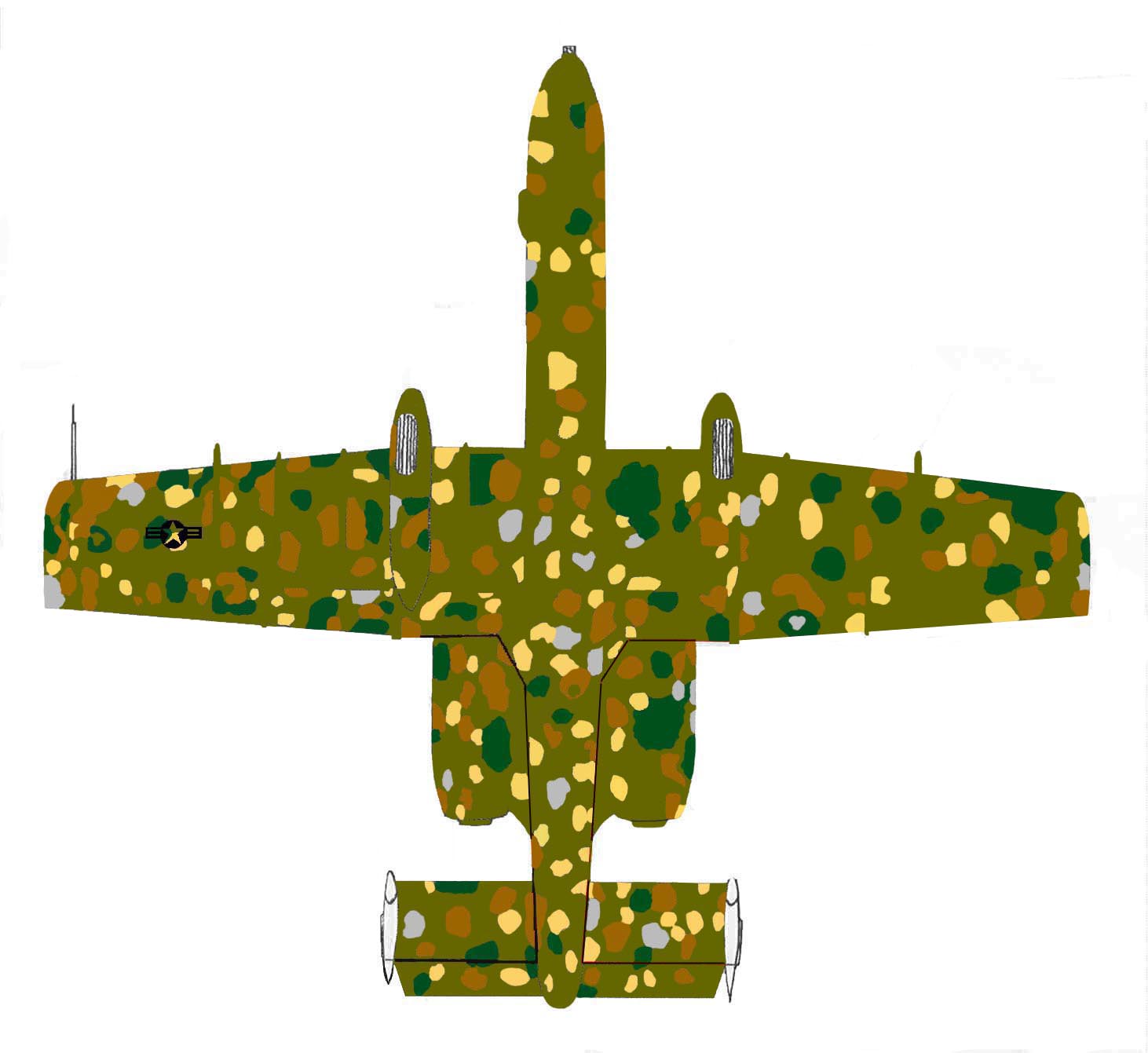

Color Scheme Diagrams

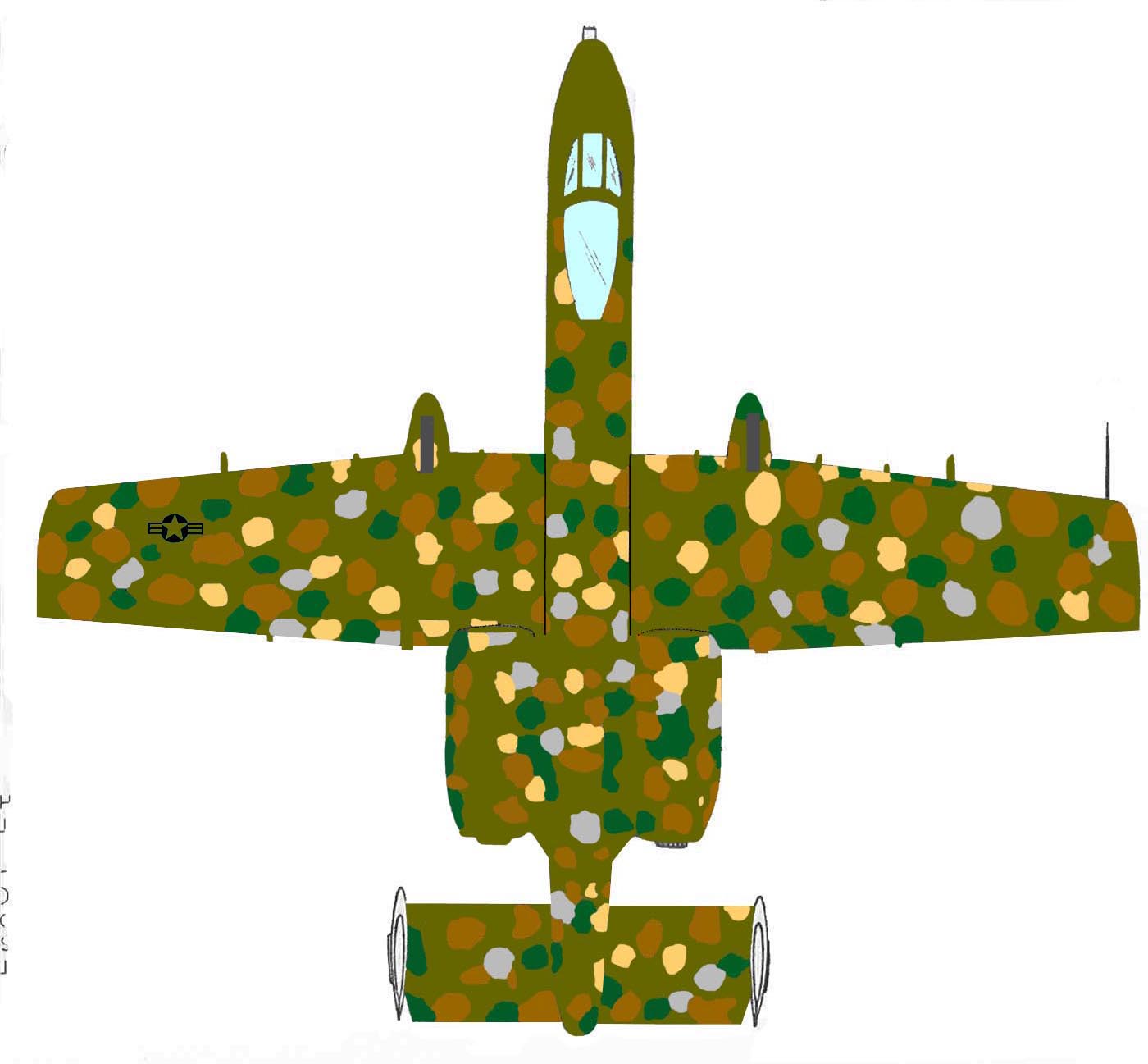

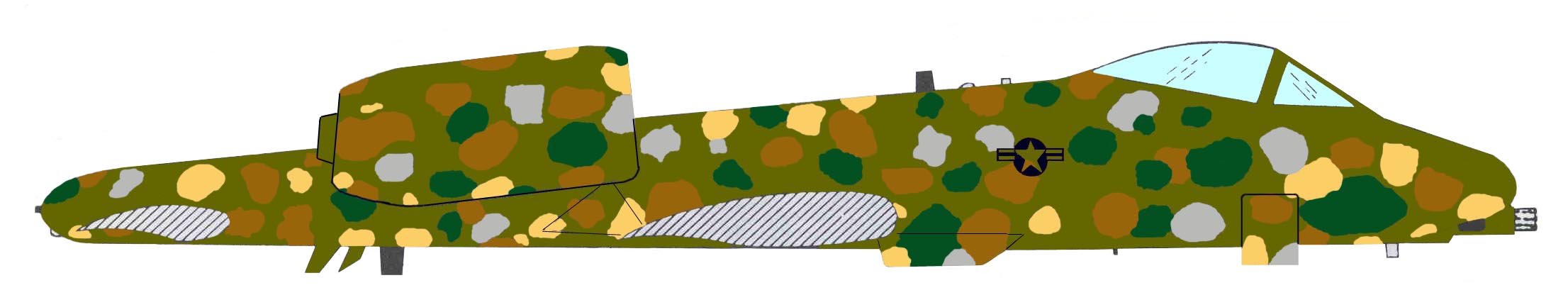

Click the color scheme diagrams below to view a larger, higher resolution image of each:








Camouflage Detail Photographs


Click the thumbnails below to view the larger images.
Use your browser's "Back" arrow to return to this page.

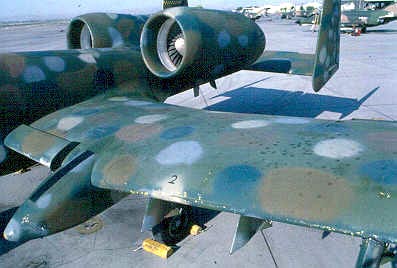

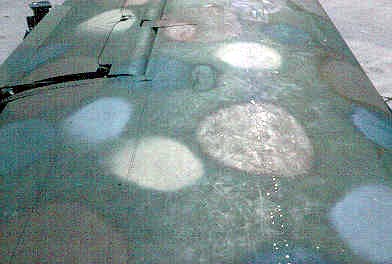

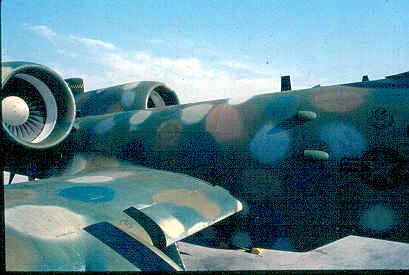

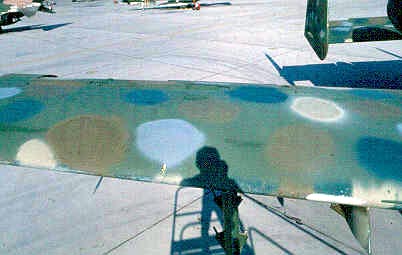

Note the original ghost gray finish on the open flaps

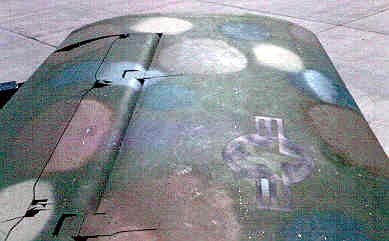

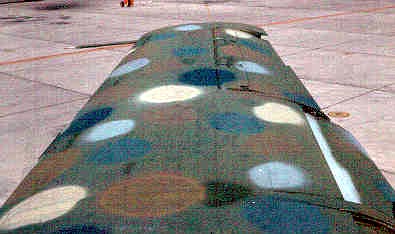

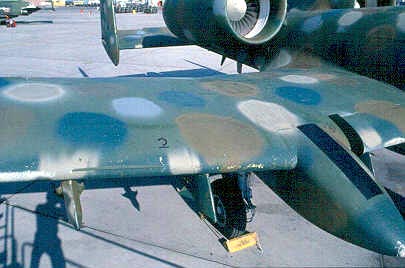

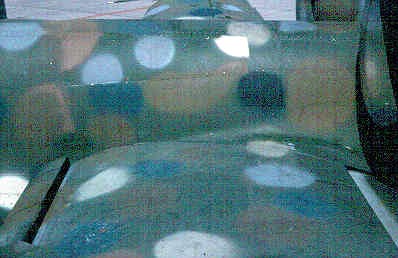

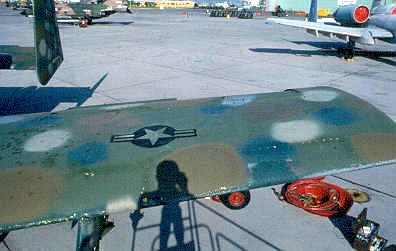

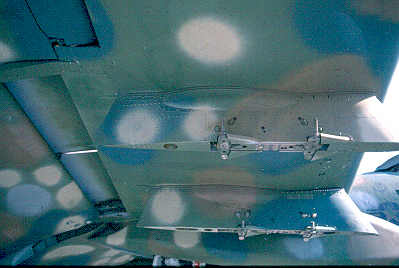

This underside view of the right wing shows the partially re-camouflaged flap covers

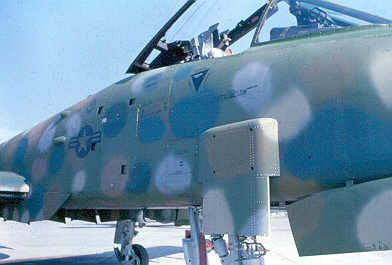

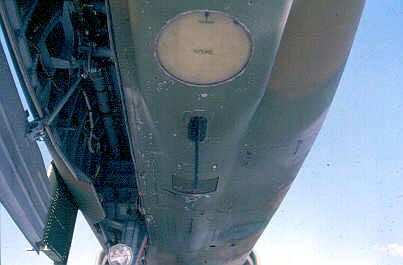

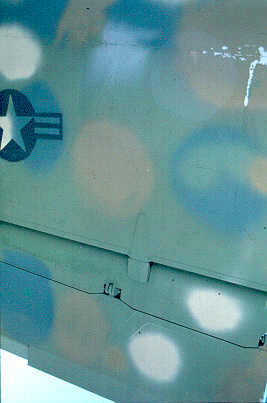

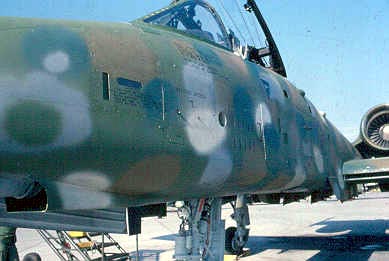

Note the antenna positions beneath the forward fuselage, standard for early production airframes.

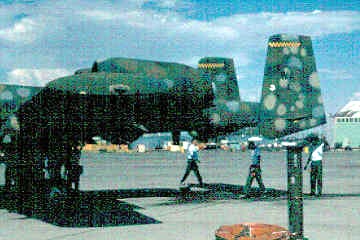

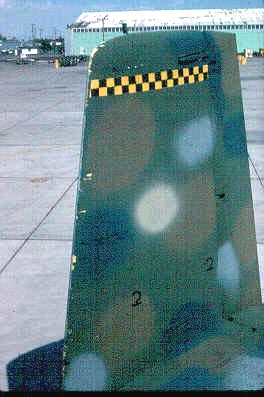

The dorsal formation light/rearward flood light was originally positioned between the two dorsal antenna, as seen in this view.

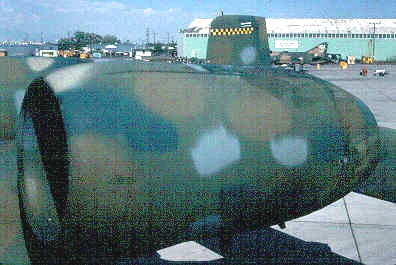

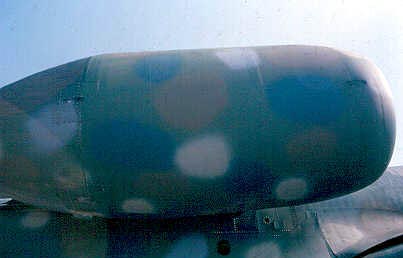

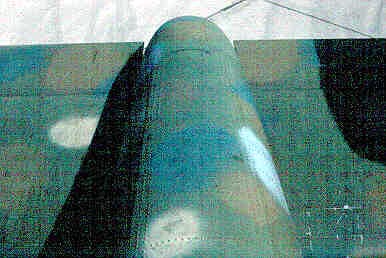

The unpainted yellow disc on the gun faring was the antenna for the UHF Automatic Direction Finder.

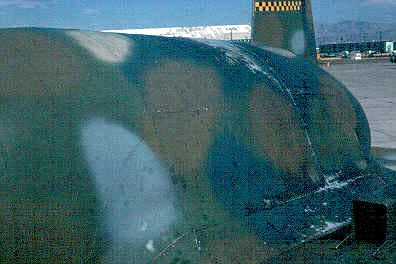

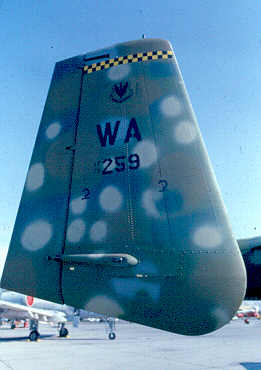

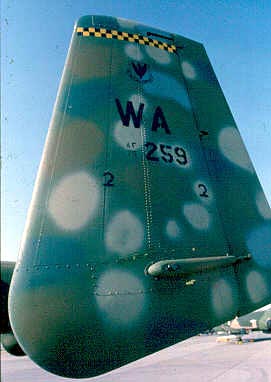

The small spike atop the right vertical tail was the X-Band radar antenna. This feature was delivered on production A-10s, but usually deleted.
